Description
A bellows globe valve is a type of industrial valve designed to regulate and control the flow of fluids (liquids or gases) within a pipeline. It is specifically designed to provide a hermetic seal to prevent leaks and emissions, making it suitable for applications involving hazardous or corrosive substances. The main distinguishing feature of a bellows globe valve is the presence of a flexible metal bellows assembly integrated into the valve body.

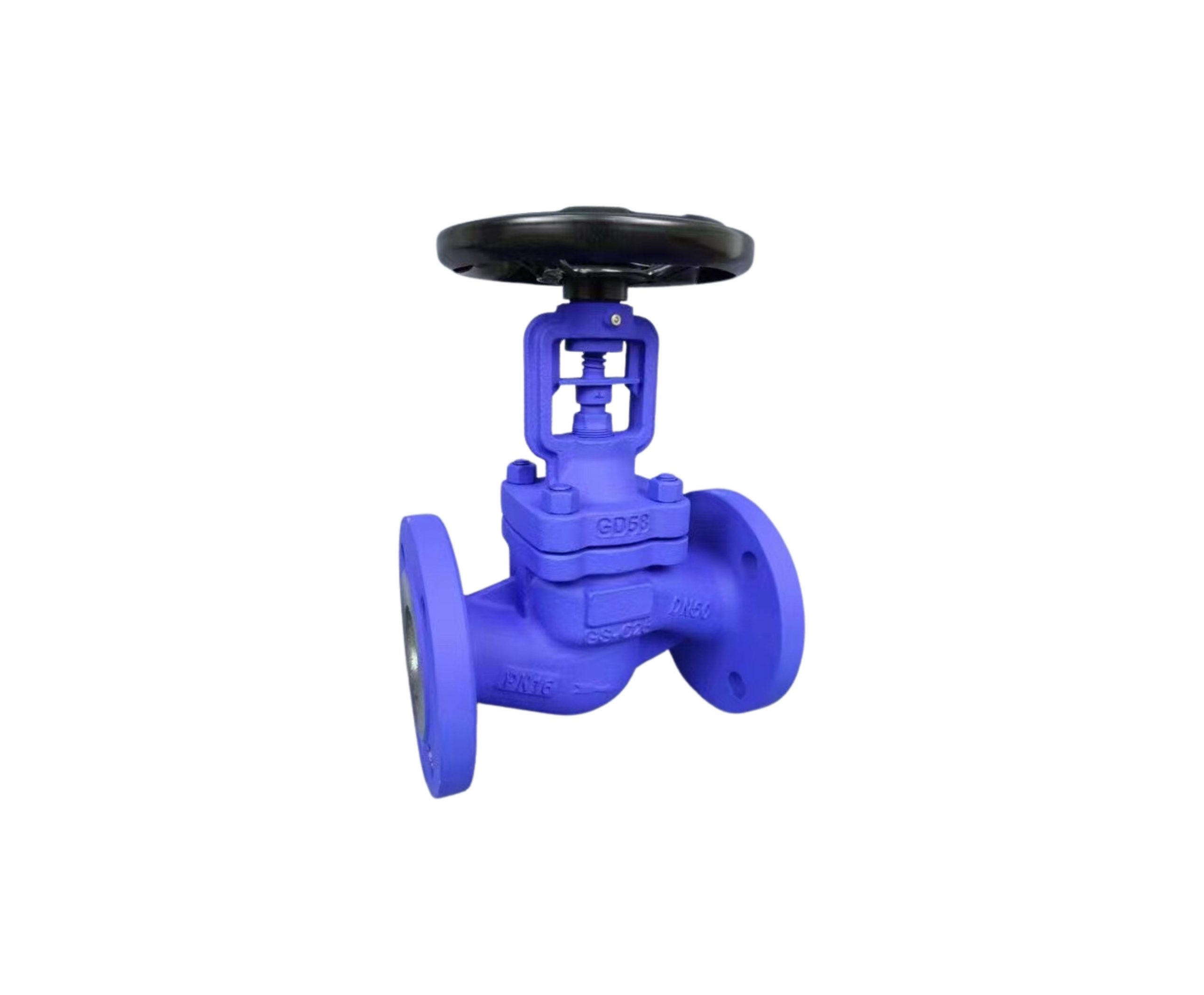

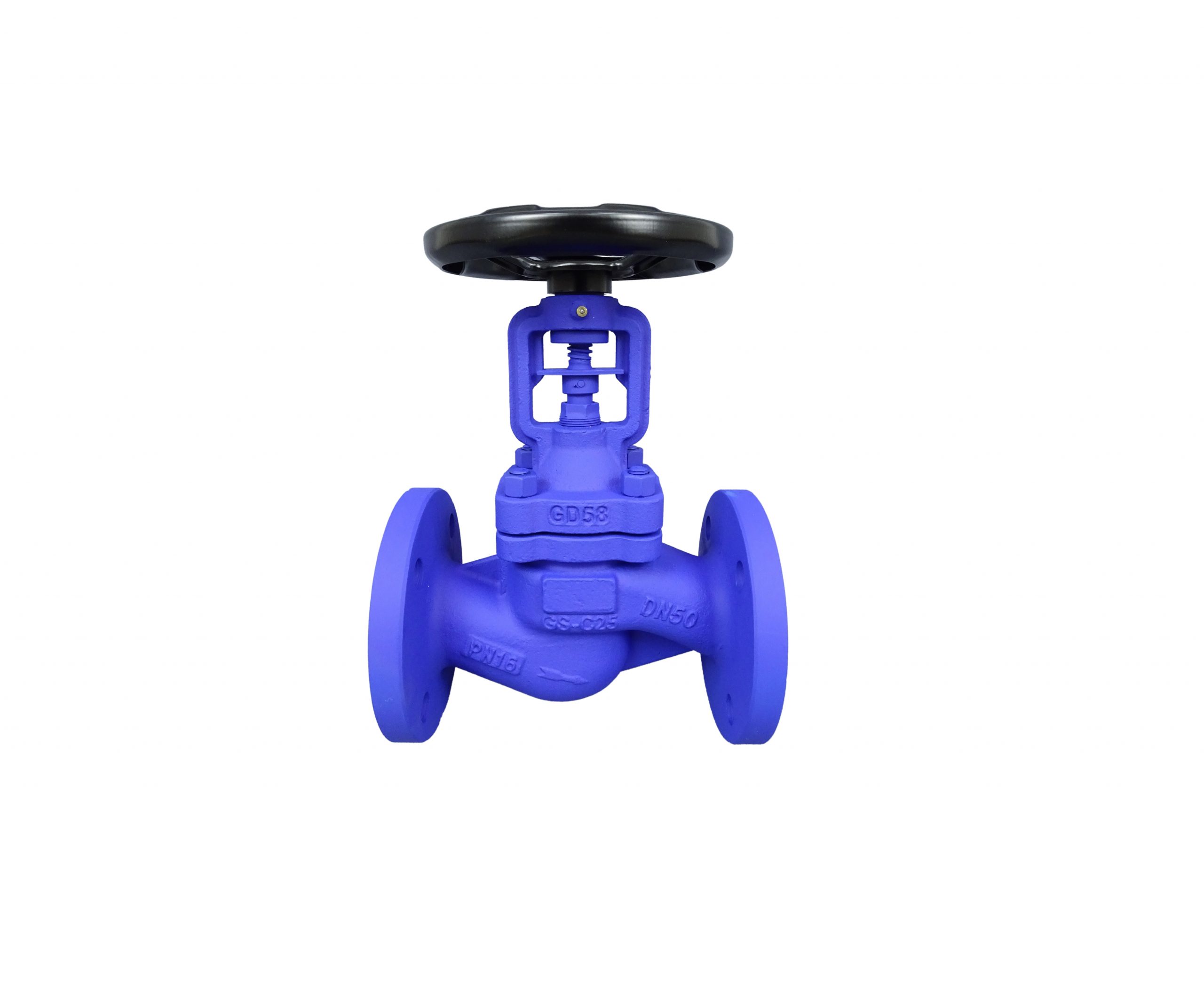

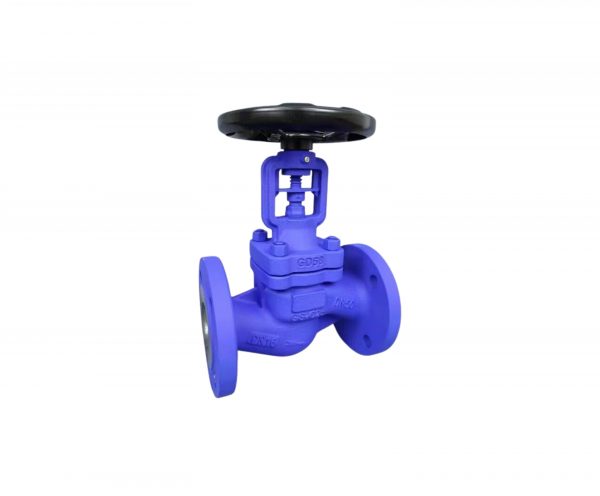

Here are the key components and features of a bellows globe valve:![Bellows Globe Valve](https://www.jiangsu-zhengfeng.com/wp-content/uploads/2023/08/微信图片72-300x225.jpg)
- Valve Body: The valve body is typically made from materials such as cast iron, carbon steel, stainless steel, or other suitable alloys. It houses the internal components of the valve and provides the connection points for the pipeline.
- Bonnet: The bonnet is the cover that encloses the internal components of the valve and provides a seal to prevent leakage. It is usually bolted or threaded onto the valve body.
- Valve Disc (Plug): The valve disc, also known as the plug, is the movable component that controls the flow of fluid through the valve. It is connected to a stem that extends through the bonnet.
- Valve Stem: The stem connects the valve disc to the actuator (handle, handwheel, or actuator device). When the stem is turned, it moves the valve disc to open or close the valve.
- Actuator: The actuator is the mechanism used to operate the valve, either manually or automatically. It can be a simple handwheel for manual operation or an electric, pneumatic, or hydraulic actuator for automated control.
- Bellows Assembly: The bellows assembly is a flexible, corrugated metal component that is welded or connected to the valve stem and bonnet. It extends into the valve body and provides a sealed barrier between the process fluid and the external environment. The bellows assembly allows for stem movement while maintaining a tight seal, even when the valve is in motion.
- Packing: In addition to the bellows assembly, traditional packing materials (such as PTFE, graphite, or braided fibers) might also be used to provide additional sealing and prevent leakage around the valve stem.
Benefits of Bellows Globe Valves:
- Zero Leakage: The bellows assembly provides a hermetic seal that prevents leaks, making the valve suitable for applications with toxic, corrosive, or hazardous fluids.
- Low Maintenance: The bellows design reduces the need for frequent maintenance due to the minimized wear and tear on the packing materials.
- Environmental Compliance: Bellows globe valves help industries meet environmental regulations by reducing emissions of harmful substances.
- Precise Flow Control: Globe valves are well-known for their ability to provide accurate flow control, making them suitable for applications requiring precise adjustment of flow rates.
- Wide Applications: Bellows globe valves are used in various industries, including chemical, petrochemical, pharmaceutical, and food processing, where tight sealing and flow control are crucial.
It’s important to note that while bellows globe valves offer superior sealing capabilities, they can also have higher pressure drops compared to other types of valves. The specific design, materials, and operating conditions should be carefully considered when selecting a valve for a particular application.
