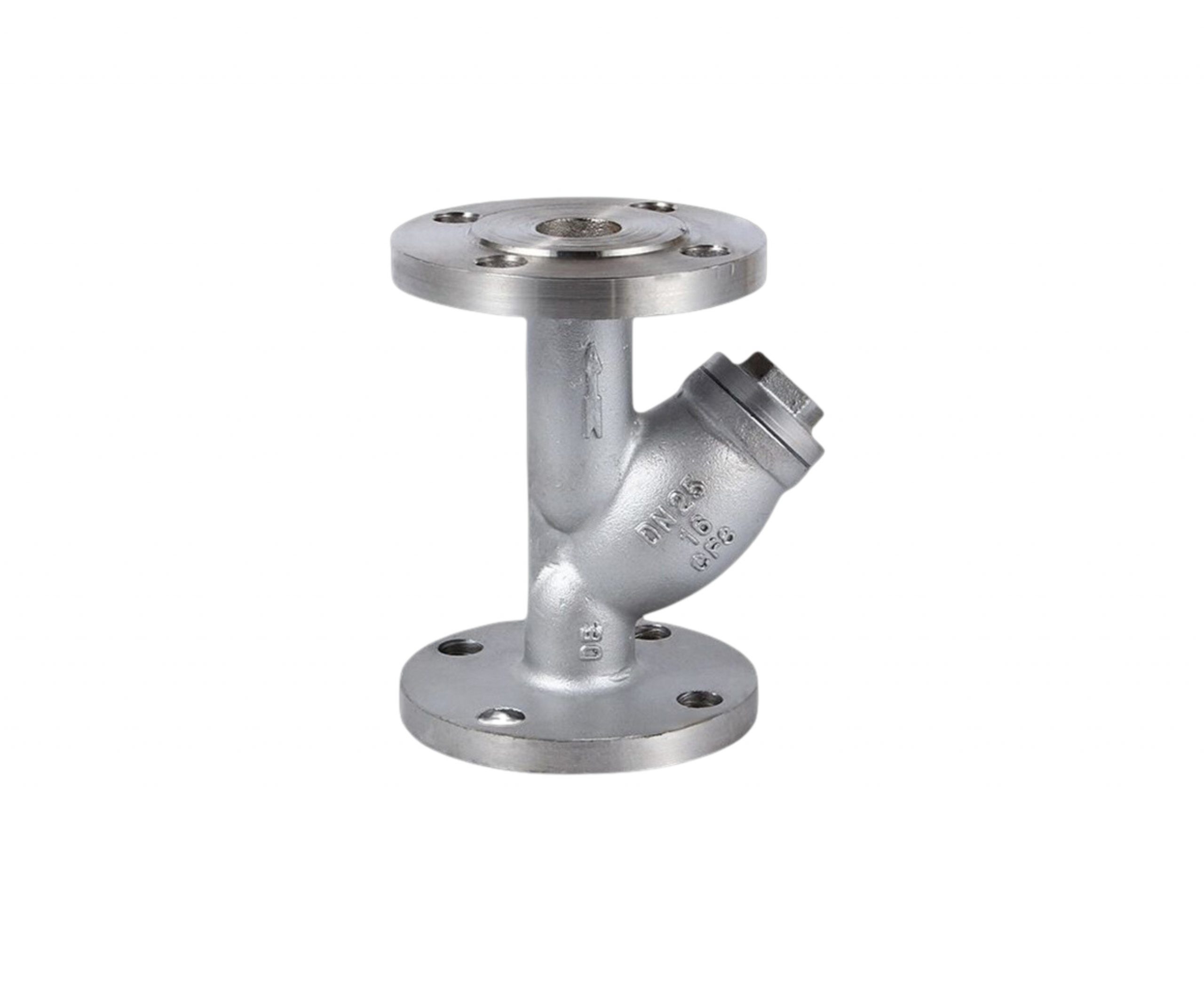

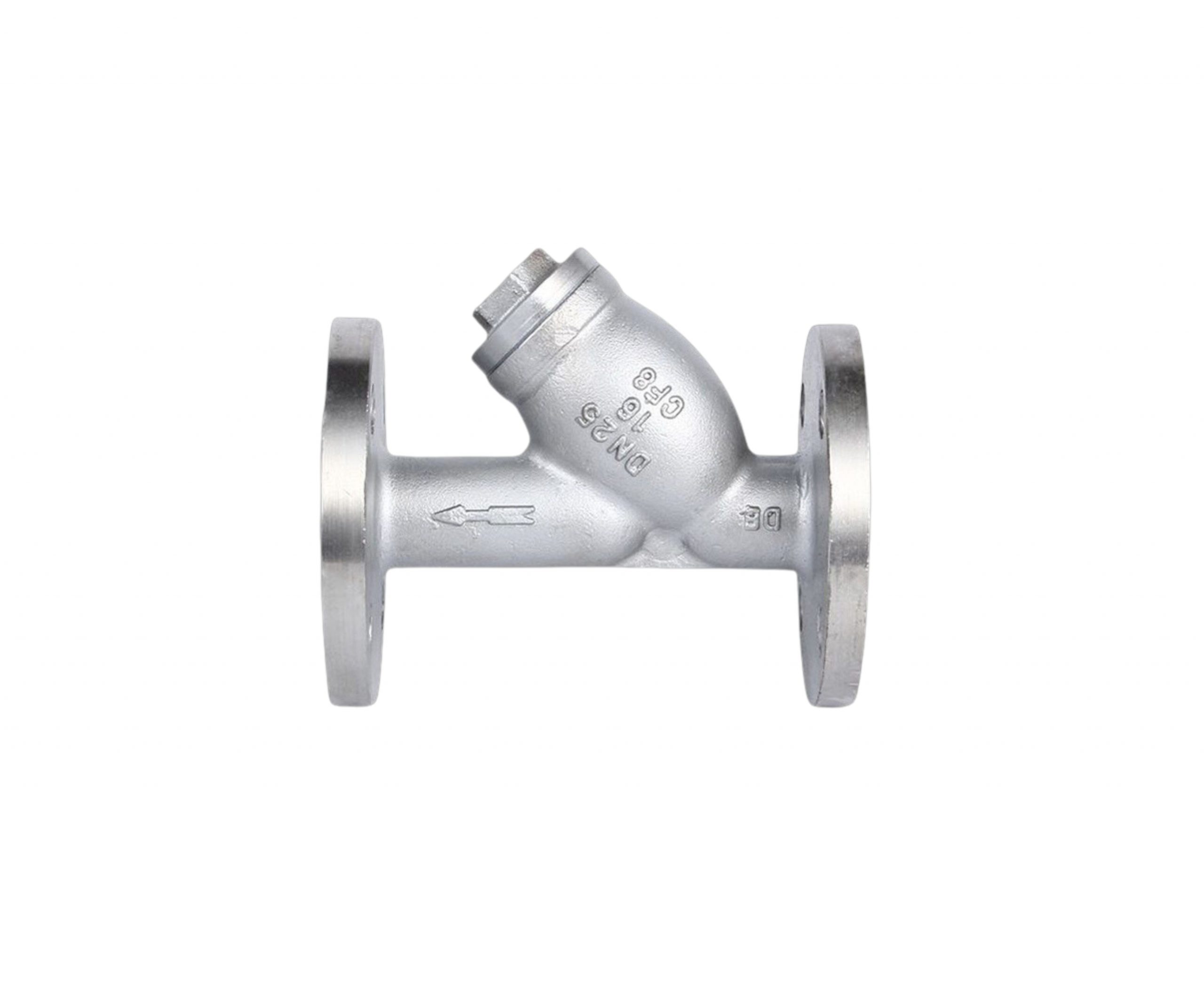

Flanged Y-Type Strainer

Description

Data Sheet

– 1/2″~12″ (DN15~DN300)
– W.P.: PN16 CLASS 150 10K
– W.T.:425°C

A flanged Y-type strainer is a specific type of strainer designed for use in piping systems to filter out impurities and solid particles from fluids. Its name “Y-type” is derived from its Y-shaped body.

Here’s a brief introduction to a flanged Y-type strainer:

1. Design:

Y-Shaped Body: The strainer has a Y-shaped or Y-pattern body, providing an efficient and compact design for effective straining.
Flanged Ends: It features flanged ends, providing a flat and bolted surface for easy and secure installation in flanged piping systems.

2. Operation:

Straining Function: The primary function of the Y-type strainer is to filter and remove solid particles, debris, and impurities from flowing fluids.
Mesh Screen: Inside the Y-shaped body, there is a mesh or perforated screen that captures particles while allowing the fluid to pass through.

3. Connection Type:

Flanged Ends: The strainer is designed with flanged ends, allowing direct attachment to other flanged components in the piping system.

4. Materials:

Material Variety: Flanged Y-type strainers can be constructed from various materials, including cast iron, stainless steel, or other materials suitable for the specific application.

5. Size Range:

Various Sizes: These strainers come in different sizes to accommodate various pipe diameters and flow rates.

6. Applications:

General Piping Systems: Used in a wide range of piping systems to protect pumps, valves, and other equipment by filtering out debris.
Process Industries: Commonly employed in industries such as chemical processing, water treatment, and oil and gas.

7. Flange Standards:

ANSI Flange Standards: Flanged Y-type strainers often comply with ANSI flange standards, ensuring compatibility with other flanged components.

8. Pressure Rating:

Pressure Compatibility: The strainers are rated for specific pressure levels to ensure safe and reliable operation within the specified range.

9. Compliance with Standards:

Industry Standards: Flanged Y-type strainers are manufactured to comply with industry standards and specifications, ensuring their reliability and performance.

10. Ease of Maintenance:

Bolted Connection: The flanged ends with bolt holes allow for a secure and straightforward connection to other flanged components, facilitating easy disassembly for maintenance.

Flanged Y-type strainers are essential components in piping systems where the removal of solid particles and debris is critical. Their flanged design ensures secure installation in flanged piping systems, making them suitable for various applications in different industries.
