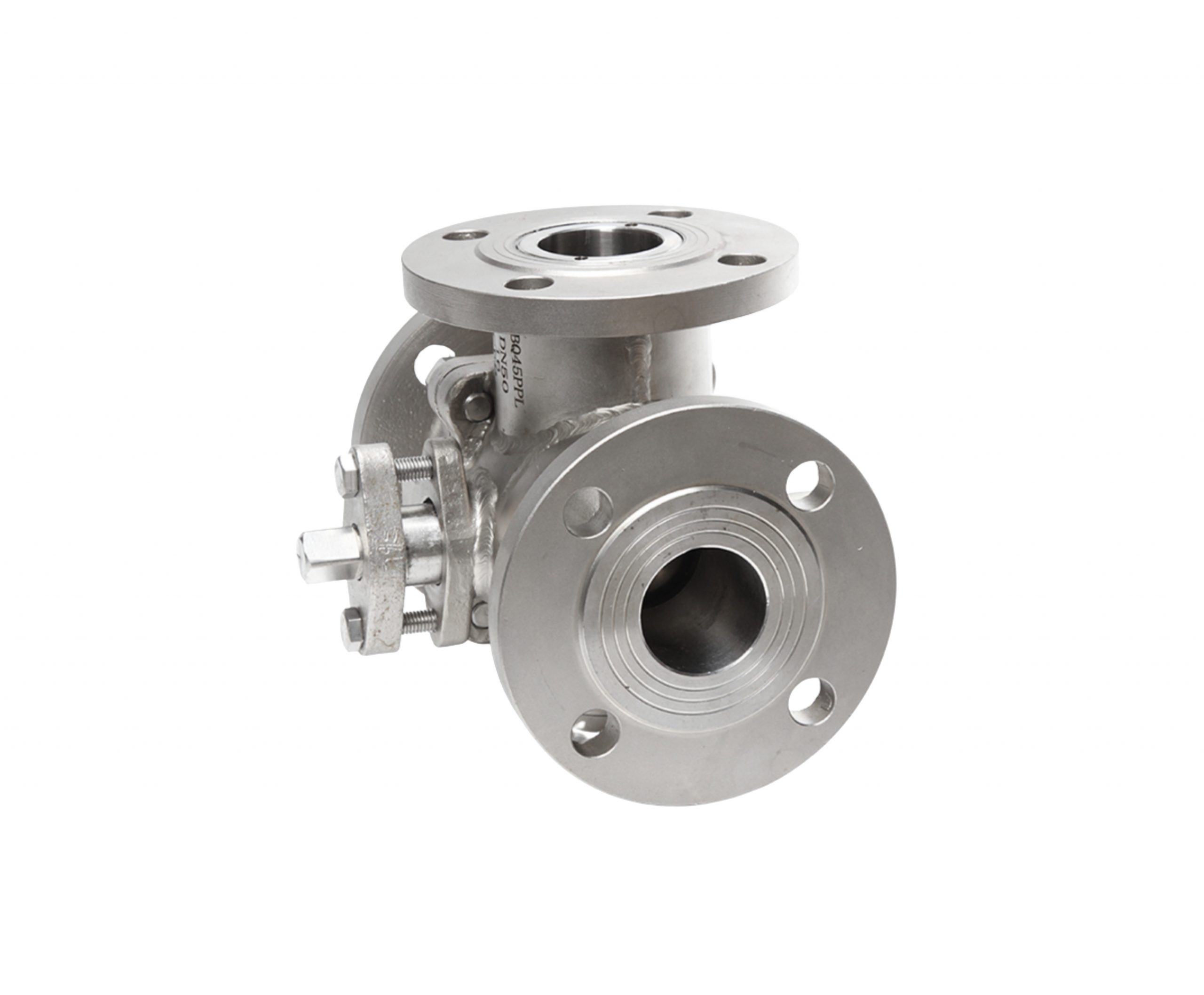

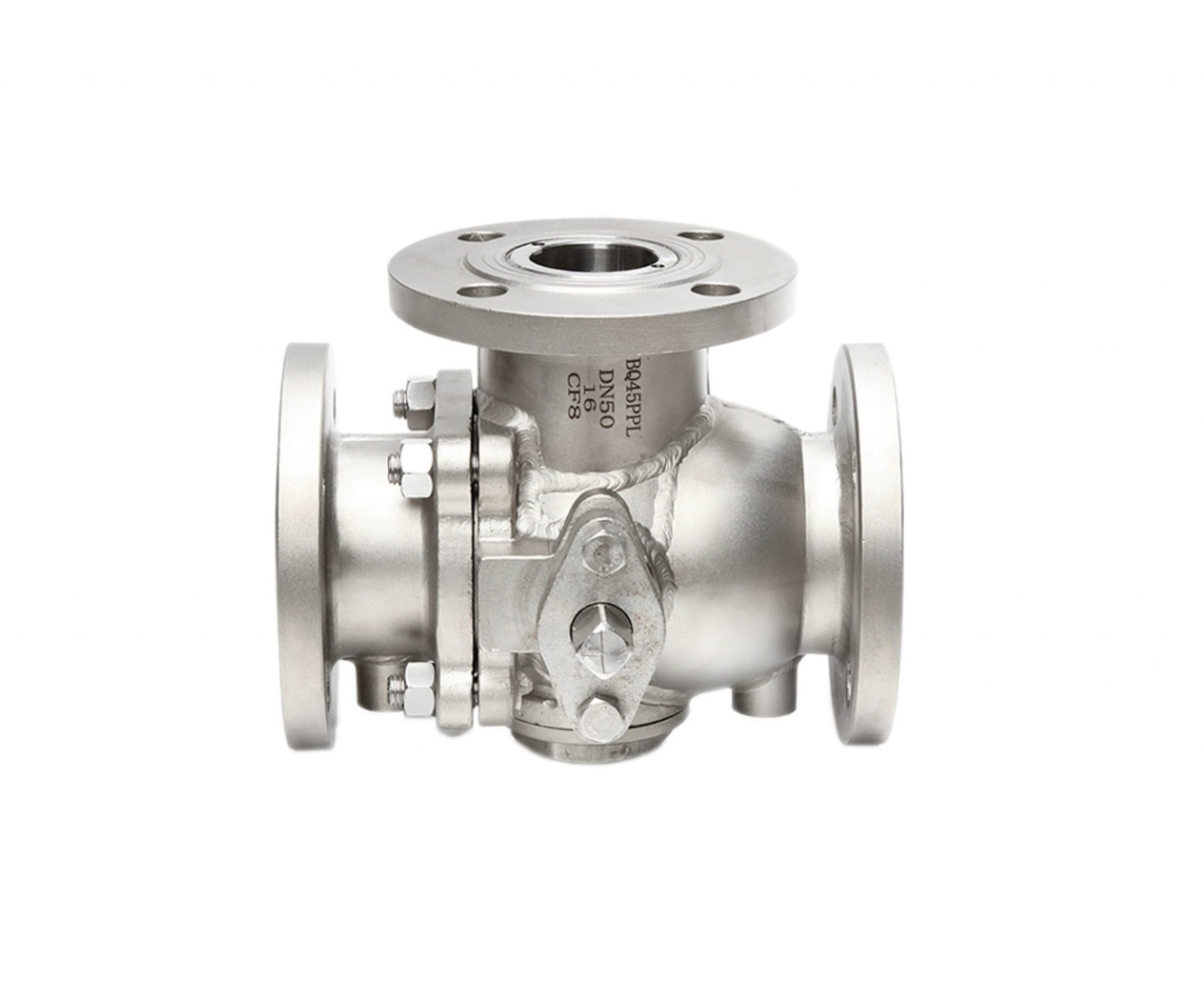

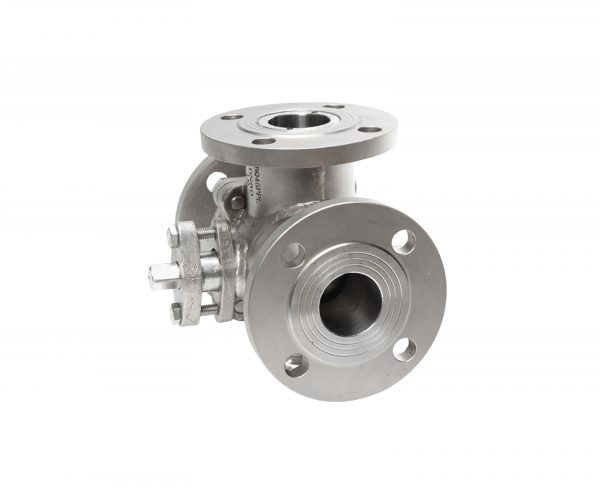

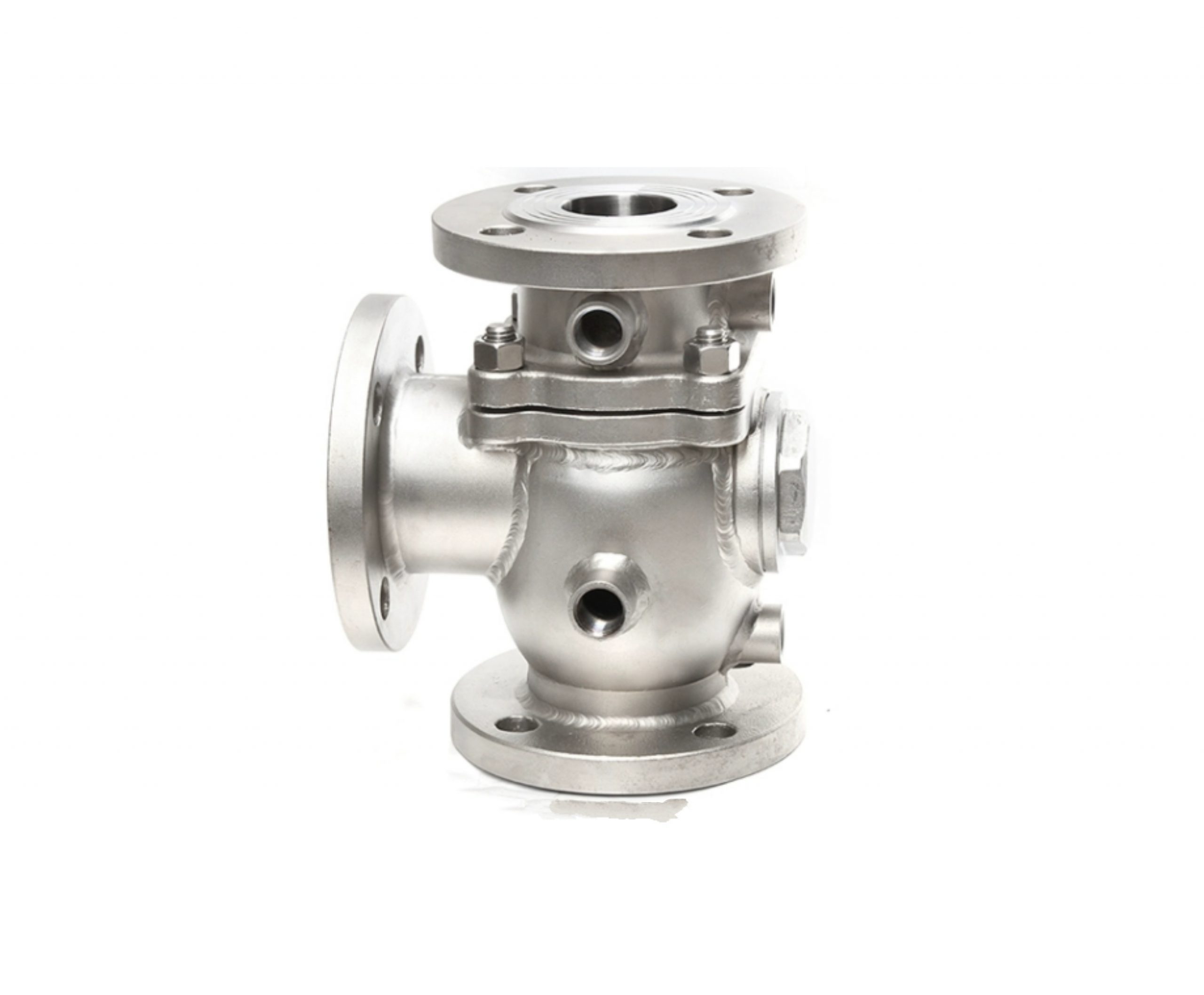

Insulated Three-way Ball Valve

Description

Data Sheet

– Full port, 1/2’~6″ (DN15~DN150)
– W.P.: PN16/40
– W.T.:-20°C~400℃
– Investment casting
– Blow-out proof stem
– Anti-static device (option)
– Design: GB /T 12237
– Flange dimension: HG /T 20592
– Face to face: GB / T 12221
– Inspection & testing: GB / T 13927, JB / T 9092

The main feature of insulated three-way ball valve

Three-way design: The insulated three-way ball valve features three fluid passages, allowing for the diversion and merging of different fluids. By rotating the ball, the fluid can be directed into different channels, enabling different flow control and flow direction adjustments.

Insulation performance: The use of the insulating layer effectively reduces heat exchange around the valve, providing insulation. It prevents external temperatures from affecting the fluid, reducing heat loss, or maintaining the fluid’s temperature.

Temperature range: The insulating layer and valve body material of the insulated three-way ball valve typically have excellent temperature resistance, making it suitable for a wide range of temperatures. The specific temperature range depends on the choice of insulation material and valve body material, which should be selected according to the actual application requirements.
