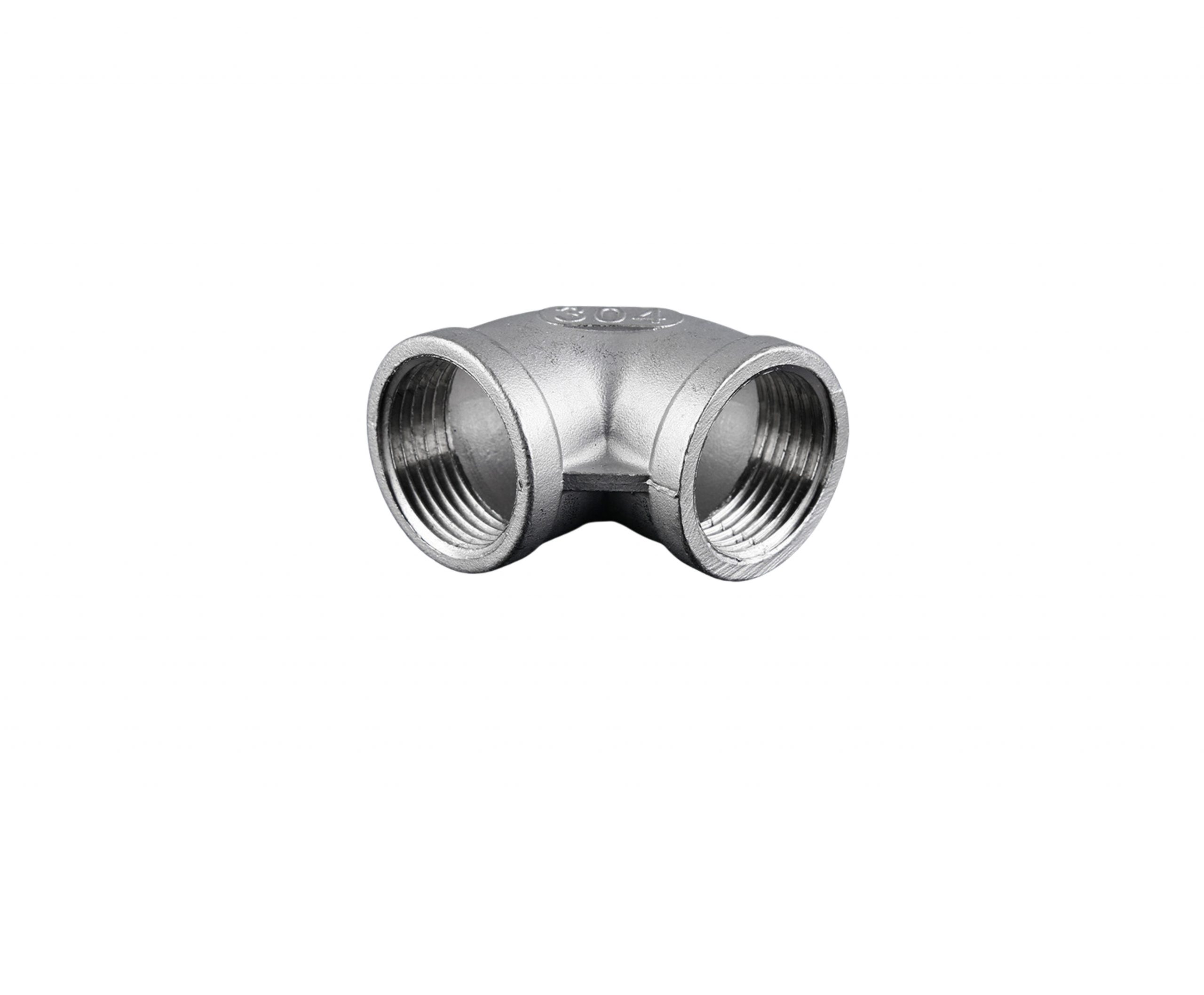

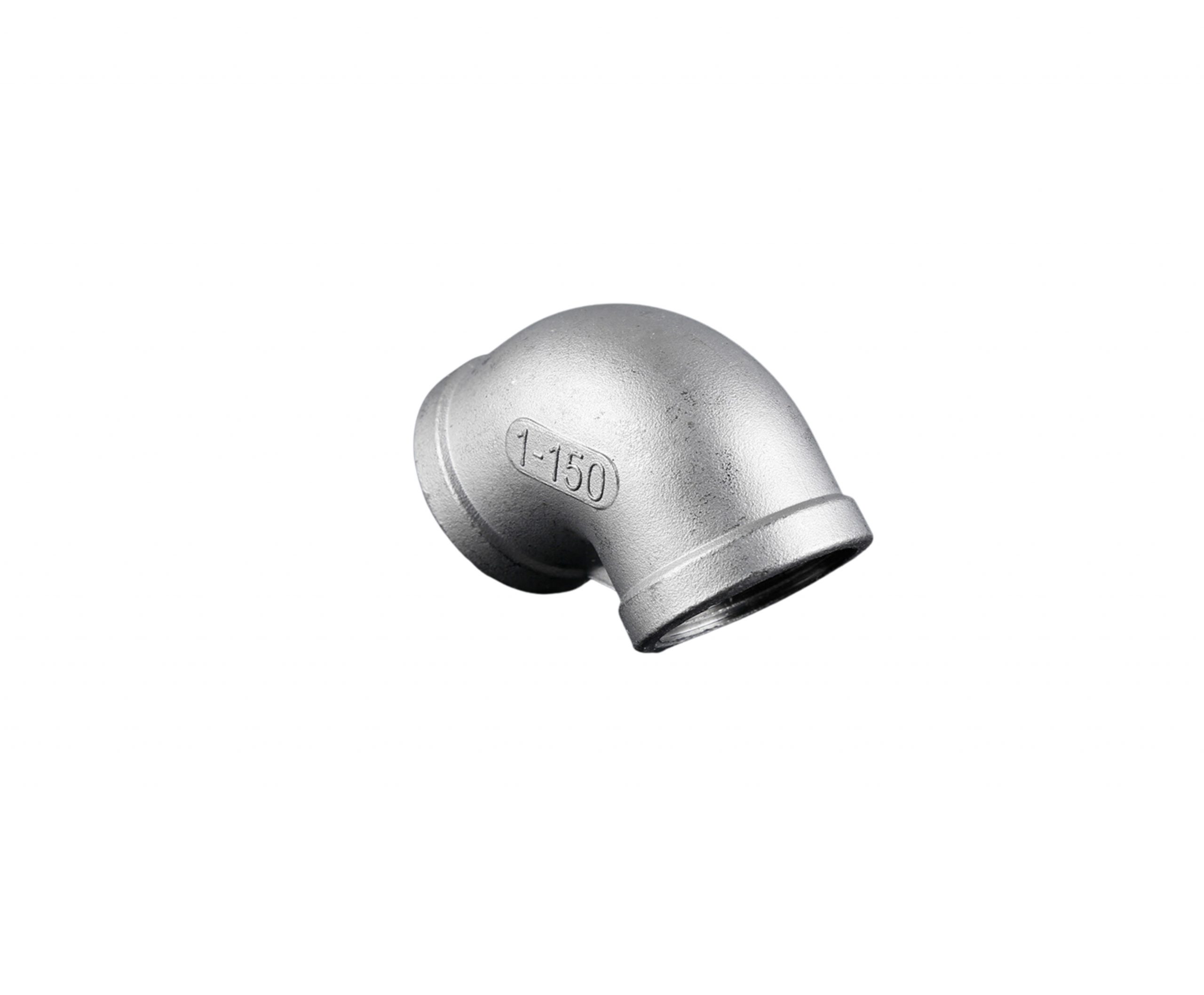

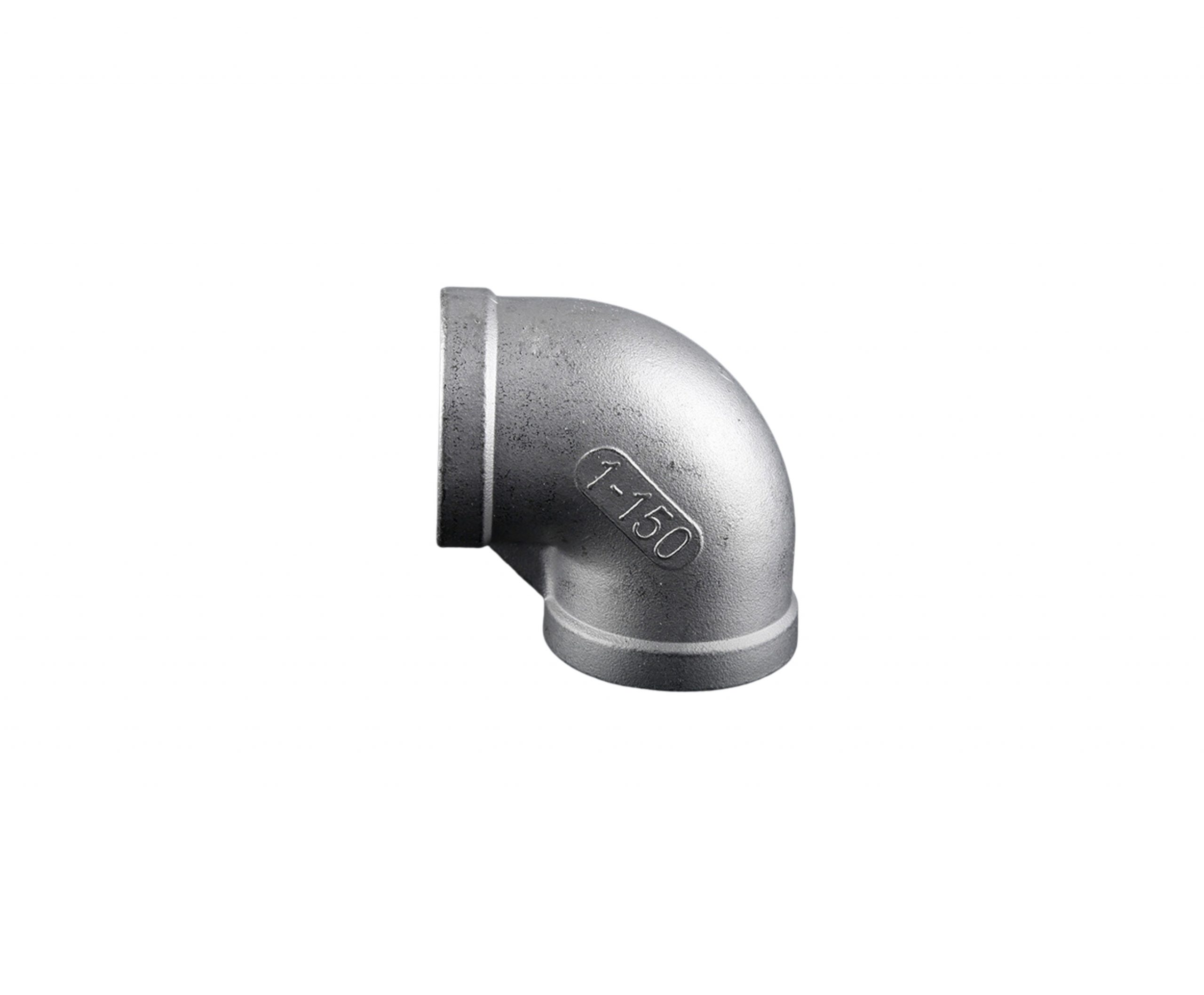

Internal Threaded Elbow

Description

Data Sheet

Feature
Type:Screwed, hose. plug
Material quality:SUS304, SUS316
Flux domination of pipeline:
DN8~100&1/4″~4″
Applicable to various conditions and connected to

Internal Threaded Elbow is a common pipe fitting primarily used for changing direction within a pipeline system. Here is a detailed introduction:

1. Structural Features: Internal Threaded Elbow typically consists of internal threaded connection ports, allowing it to connect with other internally threaded pipes. Its curved section enables a smooth bend in the pipeline where a change in direction is needed.
2. Material Selection: Manufacturing materials for Internal Threaded Elbows can include copper, stainless steel, cast iron, etc. The specific choice depends on the medium within the pipeline, pressure requirements, and environmental conditions.
3. Sizes and Specifications: Internal Threaded Elbows come in various sizes and specifications to accommodate different pipe diameters and engineering requirements. Common internal threaded specifications include NPT (National Pipe Thread) and others.
4. Application Areas: Internal Threaded Elbows find widespread use in construction, water supply systems, HVAC systems, industrial pipelines, etc. They are often employed to connect water pipes, gas pipes, and other fluid pipelines, serving the purpose of connection and altering the flow direction within the pipeline system.
5. Installation and Maintenance: Internal Threaded Elbows are relatively easy to install, typically achieved by tightening threaded connections. Maintenance is also straightforward, allowing for disassembly and replacement as needed.

In summary, Internal Threaded Elbows are crucial pipe fittings that provide flexibility in changing the direction of pipelines, making them suitable for various industrial and construction applications.
