Sanitary Quick-Connect Clamp

Description

A sanitary quick-connect clamp, commonly known as a tri-clamp or tri-clover clamp, is a critical component used in hygienic and sanitary applications to secure connections in fluid processing systems. This type of clamp is widely employed in industries such as food and beverage, pharmaceuticals, biotechnology, and cosmetics.

Here are some key features and details about a sanitary quick-connect clamp:

1. Design:

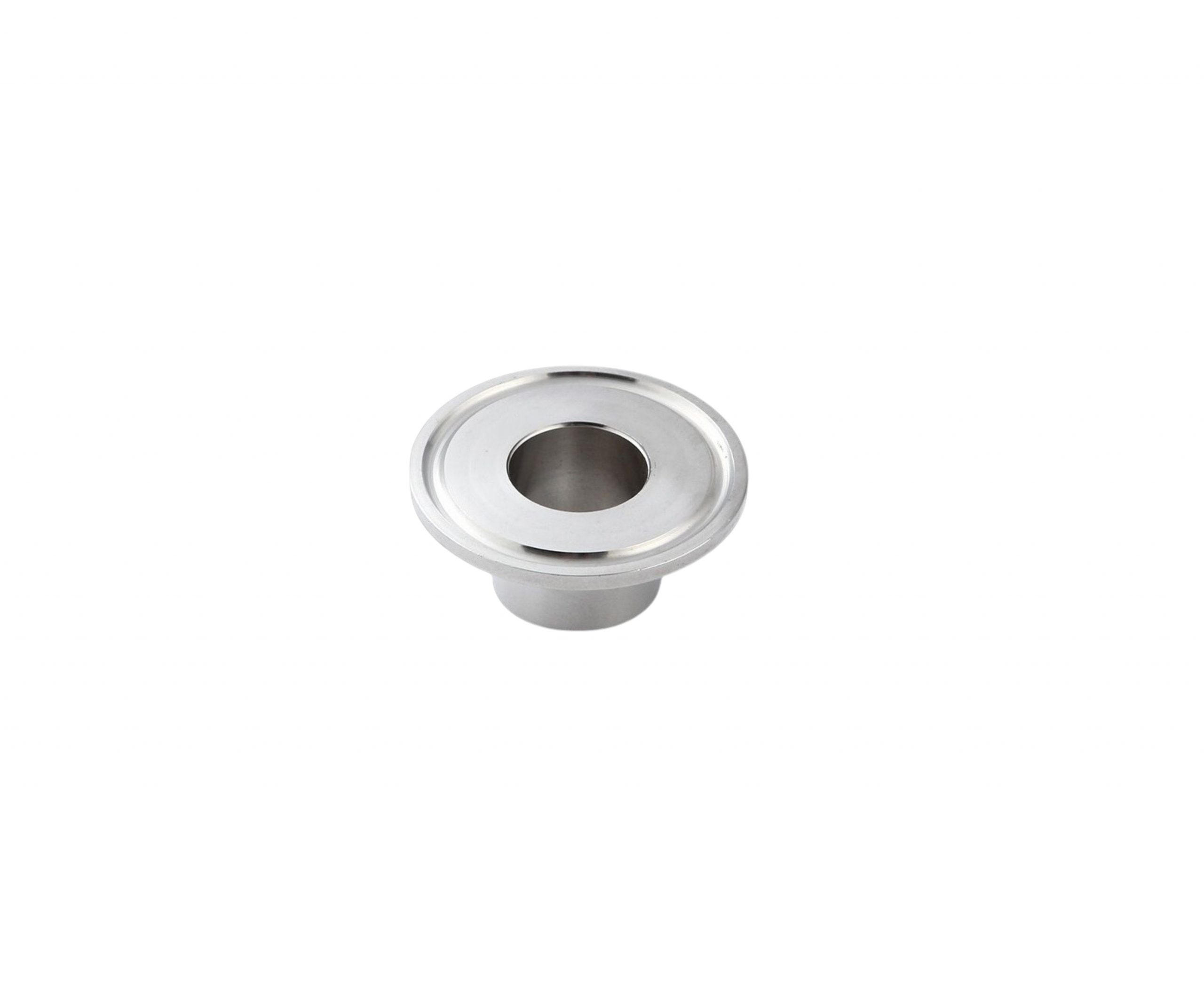

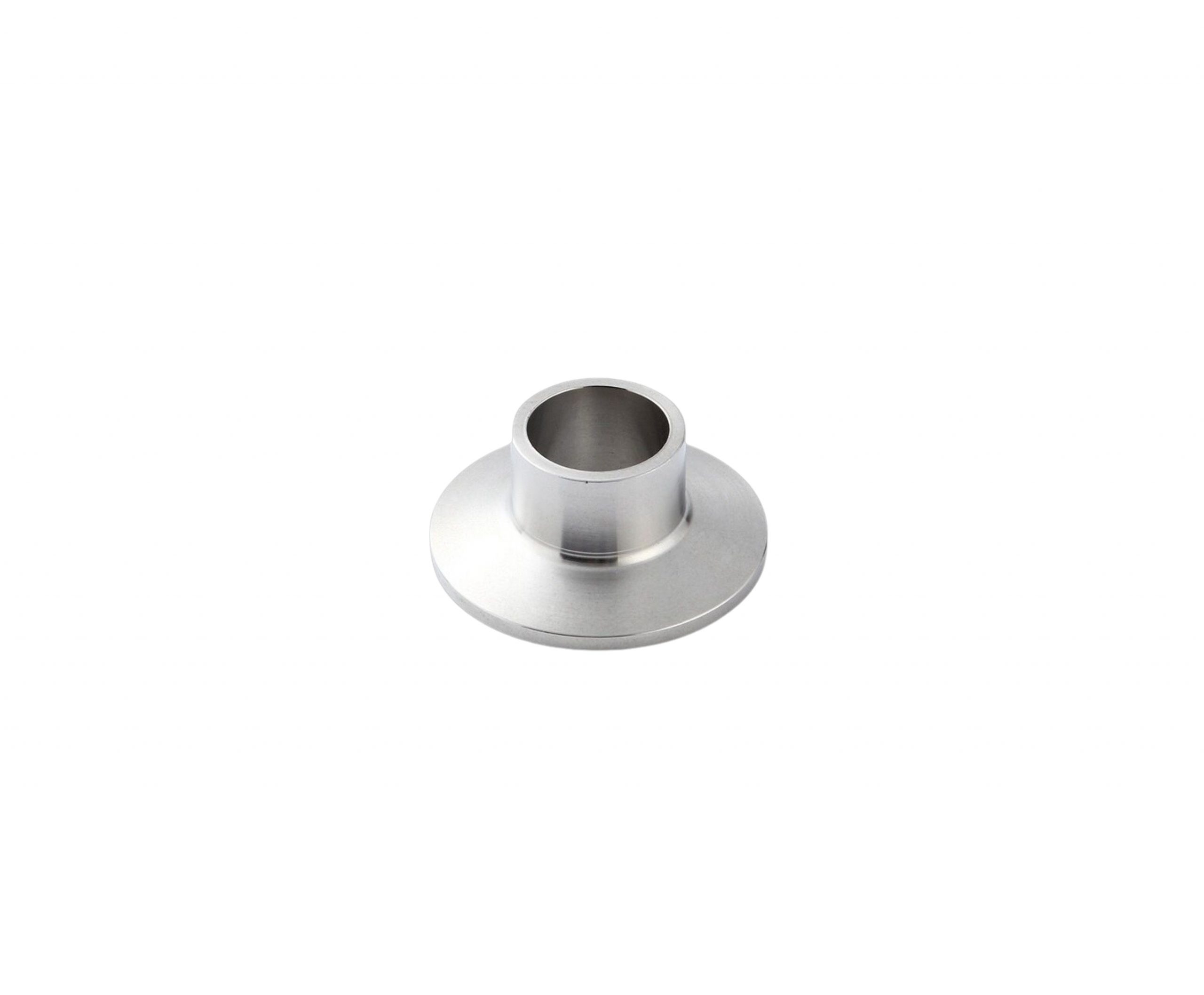

• Tri-Clamp Design: The term “tri-clamp” comes from the three components involved in the connection: two flanges (also known as ferrules) and a clamp. The clamp is used to secure the flanges together, creating a secure and leak-resistant connection.

2. Materials:

• Stainless Steel: Sanitary quick-connect clamps are typically made from stainless steel. Stainless steel is chosen for its corrosion resistance, durability, and ability to meet hygienic standards. Other materials, such as plastic, may also be used in certain applications.

3. Gasket Seal:

• Gasket: A gasket made from materials compliant with sanitary standards is placed between the flanges. The gasket ensures a tight and hygienic seal, preventing leaks and contamination.

4. Easy Assembly and Disassembly:

• Tool-Free Operation: The design of tri-clamp connections allows for easy and tool-free assembly and disassembly. This feature is crucial for quick maintenance, cleaning, and modifications.

5. Sizes:

• Variety of Sizes: Tri-clamps are available in various sizes to accommodate different pipe diameters and system requirements. Standard sizing ensures compatibility with other sanitary components.

6. Applications:

• Food and Beverage Industry: Used extensively in processing and handling equipment in the production of food and beverages.
• Pharmaceuticals: Commonly employed in pharmaceutical manufacturing processes to ensure sterility and prevent cross-contamination.
• Biotechnology: Used in biotechnological applications where maintaining a sterile environment is critical.
• Cosmetics: Applied in the production of cosmetics and personal care products to meet hygiene standards.

7. Compliance with Standards:

• Industry Standards: Sanitary quick-connect clamps are manufactured to comply with industry standards and regulations, ensuring the quality and safety of the connections.

8. Surface Finish:

• Polished Finish: The surface finish of tri-clamp components is often polished to a smooth surface, making it easy to clean and eliminating areas where contaminants could accumulate.

Sanitary quick-connect clamps, with their tri-clamp design, play a vital role in maintaining the integrity of sanitary processes by providing secure, hygienic, and easy-to-maintain connections in fluid transfer systems.
