Description
Data Sheet
– 1/4″~3″ (DN6~DN80)
– W.P.:800WOG (PN50)
– W.T.:-20°C~180°C
– Investment casting
– Thread end: ASME B1.20.1 (NPT),
DIN 259 / DIN 2999, BS 21, ISO 288-1, ISO 7-1
– Socket weld end: ASME B16.11

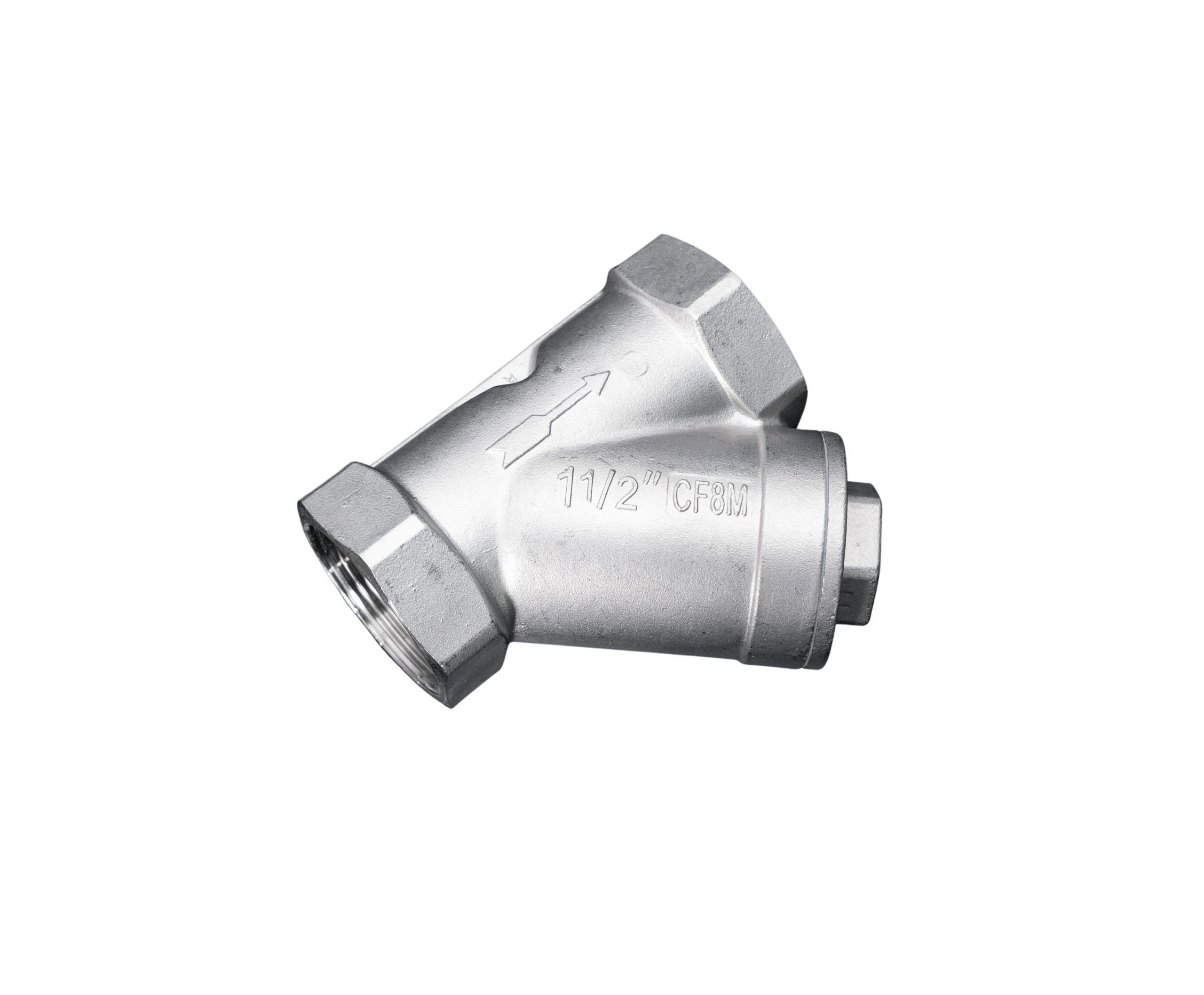

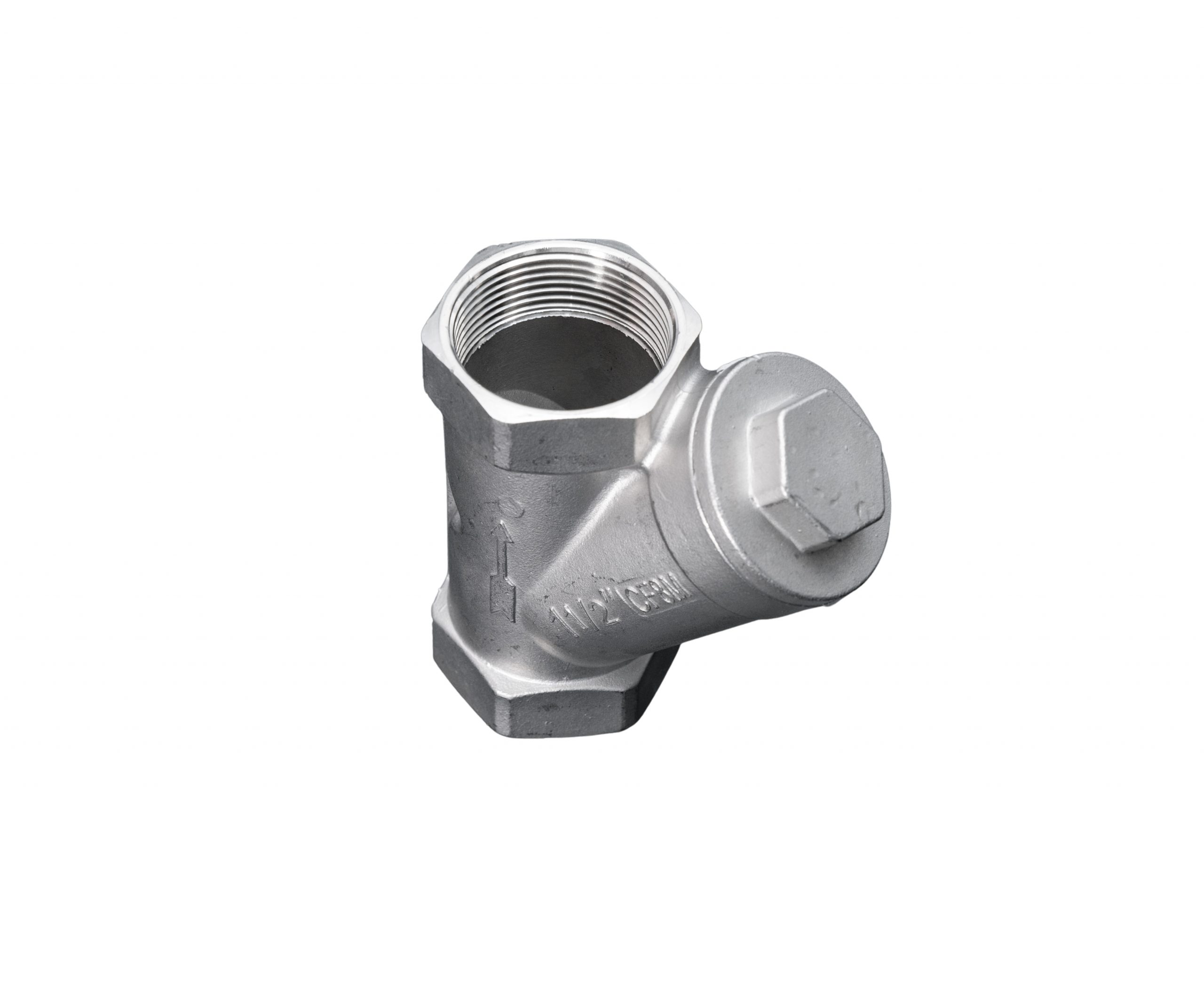

A threaded Y-type strainer is a specific type of strainer designed for use in piping systems to filter out impurities and solid particles from fluids. It is named “Y-type” due to its shape, resembling the letter Y.
Here’s a concise introduction to a threaded Y-type strainer:
1. Design:
- Y-Shaped Body: The strainer has a Y-shaped or Y-pattern body, which provides a compact design for efficient straining.
- Threaded Ends: It features threaded ends, allowing easy installation into threaded piping systems.
2. Operation:
- Straining Function: The primary function of the Y-type strainer is to filter and remove solid particles, debris, and impurities from flowing fluids.

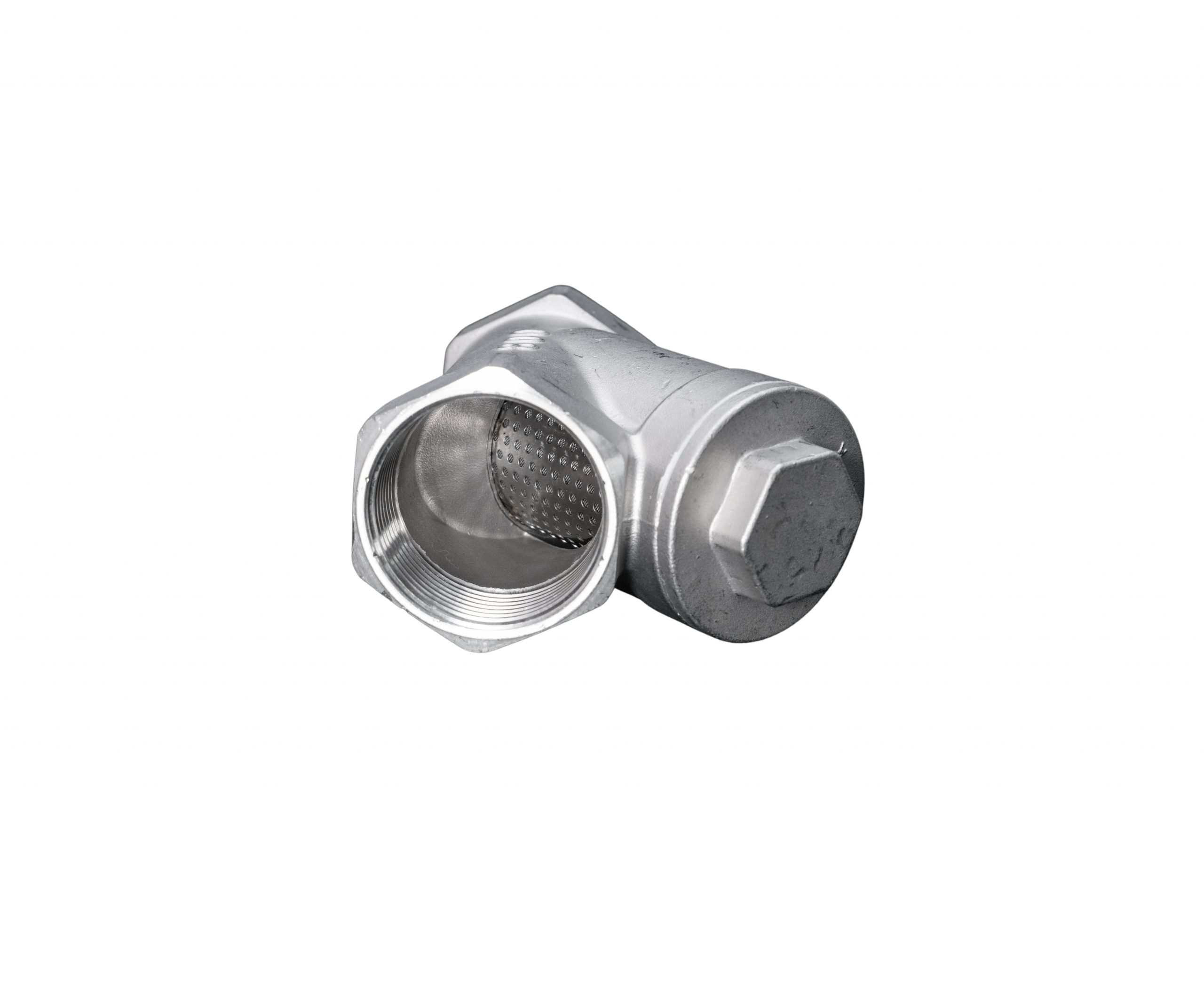

- Mesh Screen: Inside the Y-shaped body, there is a mesh or perforated screen that captures particles while allowing the fluid to pass through.
3. Connection Type:
- Threaded Ends: The strainer is designed with threaded ends, typically with male threads, for easy integration into female-threaded pipes or fittings.
4. Materials:
- Material Variety: Y-type strainers are constructed from various materials, including brass, stainless steel, or other materials depending on the application’s requirements.
5. Size Range:
- Various Sizes: Y-type strainers come in various sizes to accommodate different pipe diameters and flow rates.
6. Applications:
- General Piping Systems: Used in a wide range of piping systems to protect pumps, valves, and other equipment by filtering out debris.
- Process Industries: Commonly employed in industries such as chemical processing, water treatment, oil and gas, and more.
7. Thread Type:
- Standard Threads: The threaded ends of the Y-type strainer typically follow standard specifications, such as NPT (National Pipe Thread), ensuring compatibility with other threaded components.
8. Ease of Maintenance:
- Removable Strainer Screen: Y-type strainers are designed to allow easy removal of the strainer screen for cleaning or replacement without disassembling the entire unit.
9. Compliance with Standards:
- Industry Standards: Y-type strainers are manufactured to comply with industry standards and specifications, ensuring their reliability and performance.
10. Versatility:
- Versatile Installation: The threaded ends make Y-type strainers versatile for installation in various threaded piping systems.
11. Pressure Rating:
- Pressure Compatibility: Y-type strainers are rated for specific pressure levels, ensuring they can handle the pressure within the piping system.
Y-type strainers play a crucial role in maintaining the efficiency and longevity of piping system components by preventing the entry of unwanted particles and debris. Their threaded design facilitates easy installation and maintenance, making them essential in various industrial applications.
