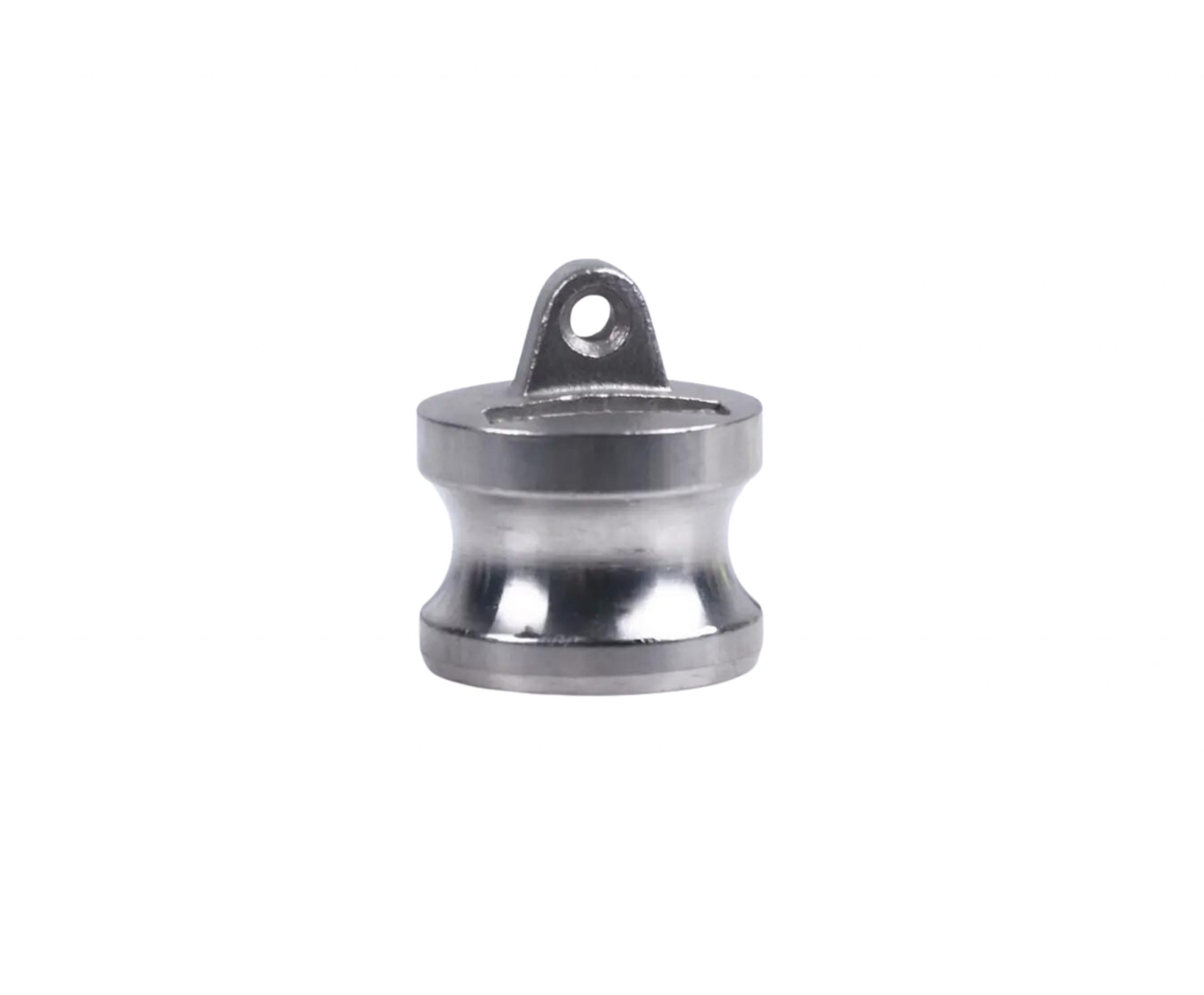

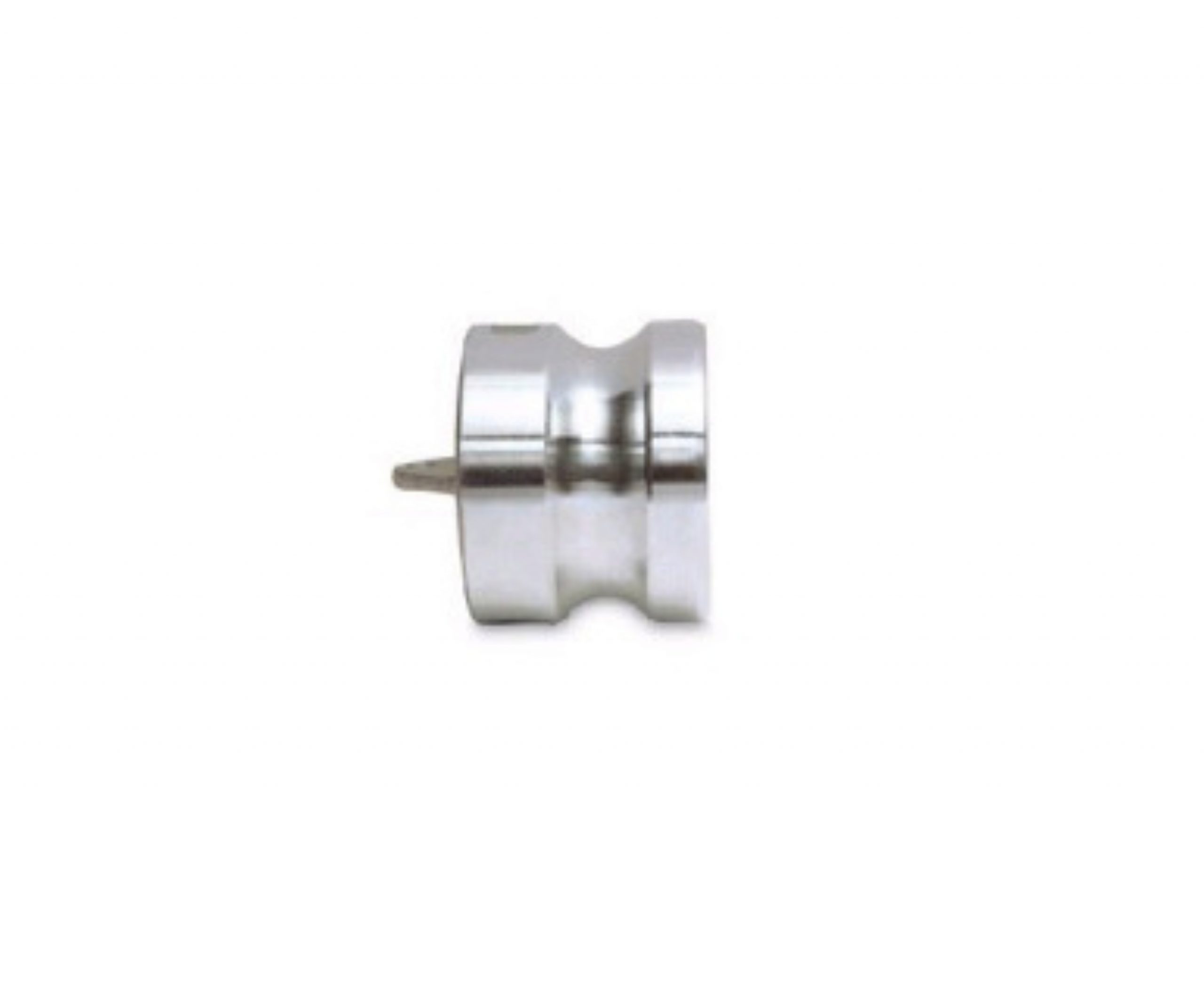

Type DP Dust Plug

Description

Data Sheet

Feature
Type:Screved. flanged. welding. adjus table joint , quick coupling
Material quality:SUS304, SUS316
Flux domination of pipeline:
DN15~150721/2″~6′
Applicable to various conditions and connected to

The term “Quick Connect Coupling DP Type” typically refers to a specific type of quick connect coupling used in fluid systems. Quick connect couplings, also known as quick disconnect or quick-release couplings, are designed for rapid and tool-free connection and disconnection of fluid lines.

Here’s a brief introduction to the DP type quick connect coupling:

1. Design:

• DP Type Design: The DP type refers to a specific design or series within the quick connect coupling family. Different manufacturers may have variations in their DP type couplings.

2. Connection Type:

• Quick Connection: DP type couplings are designed for quick and easy connection and disconnection without the need for tools.

3. Applications:

• Fluid Systems: Used in various fluid systems, including hydraulic systems, pneumatic systems, and other applications where quick and secure connections are essential.

4. Features:

• Double-Push Design: The “DP” may stand for a double-push or double-acting mechanism, indicating that both sides of the coupling can be engaged or disengaged by pushing.

5. Materials:

• Material Variety: Quick connect couplings, including DP type, can be constructed from materials such as stainless steel, brass, or other materials depending on the intended application.

6. Size Range:

• Various Sizes: DP type quick connect couplings come in different sizes to accommodate various hose or pipe diameters.

7. Industries:

• Automotive: Used in automotive applications for quick connection of fluid lines, such as in fuel systems or air conditioning systems.
• Industrial: Commonly employed in industrial settings where rapid and secure fluid connections are required.

8. Ease of Use:

• Tool-Free Operation: DP type quick connect couplings are designed for tool-free operation, allowing for quick and efficient coupling and uncoupling.

9. Pressure Rating:

• Pressure Compatibility: The couplings are designed to withstand specific pressure levels, ensuring safe and reliable operation within the specified range.

10. Interchangeability:

• Interchangeable: DP type couplings from reputable manufacturers may be designed to be interchangeable with similar couplings of the same type.

It’s important to note that the specific details and features of a DP type quick connect coupling may vary among manufacturers. When selecting or using these couplings, it’s recommended to refer to the manufacturer’s specifications and guidelines for proper application and compatibility.
