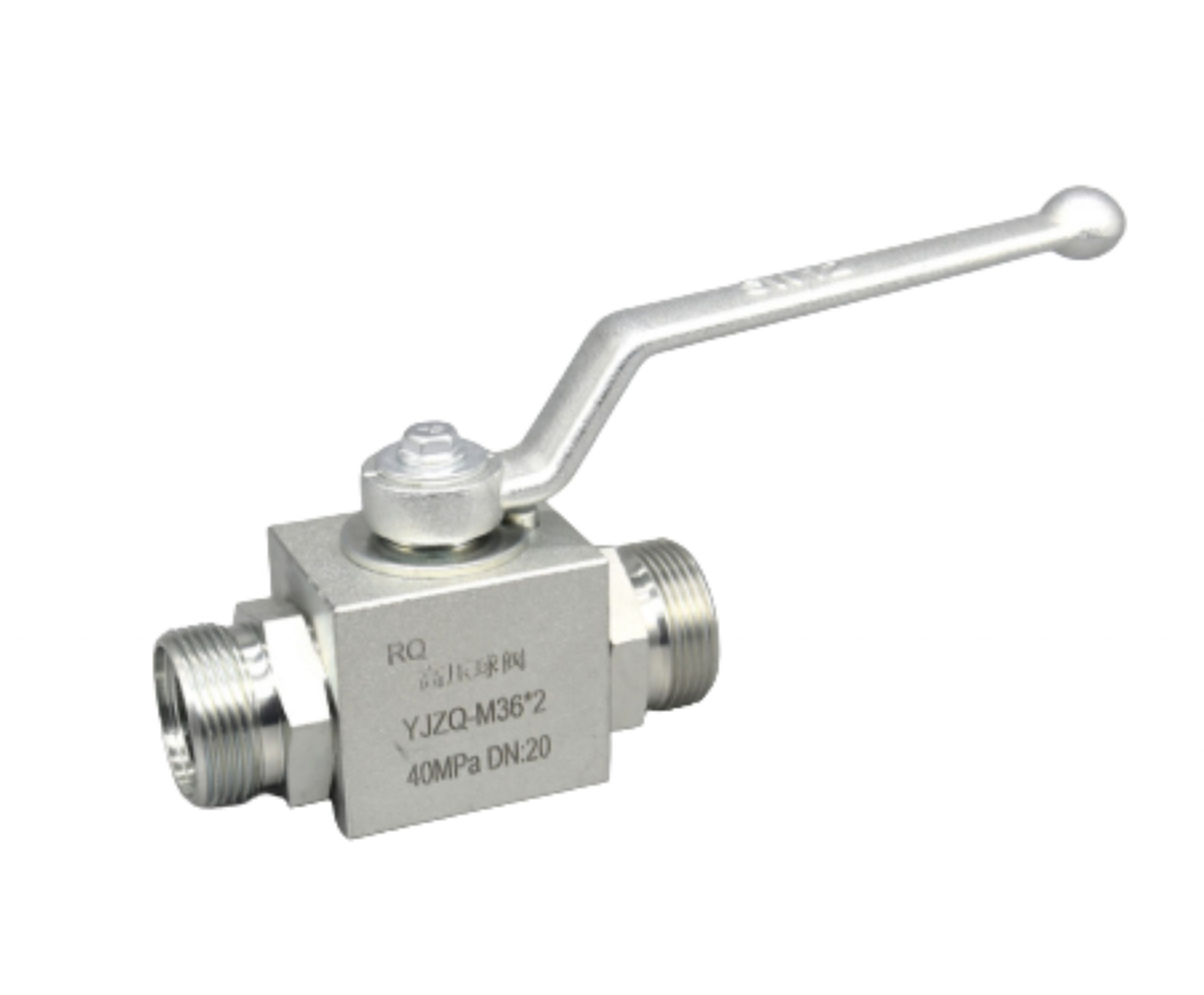

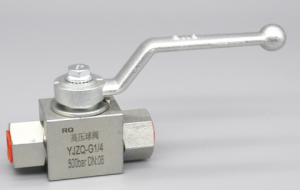

YJZQ high-pressure Ball Valve

Описание

Data Sheet

-Full port, 1/4″-4″(DN6-DN100)
-W.P.:1000WOG(PN63)
-W.P.:-20℃-180℃
-Thread type: ASME B1.20. 1 (NPT),
NIN 259/DIN 2999, BS 21,
ISO 288-1, ISO 7-1

The YJZQ high-pressure ball valve is mainly employed in scenarios requiring the handling of high-pressure fluids

The YJZQ high-pressure ball valve is primarily used to control the flow and shut-off of hydraulic fluid in hydraulic pipeline systems.The high-pressure ball valve body is typically made of forged steel and can be constructed using materials such as carbon steel or stainless steel. The surface can be chrome-plated or zinc-plated, providing additional protection against corrosion and enhancing durability.



Thread deepening treatment improves the sharpness of the thread teeth, resulting in a smoother rotation process with even force distribution. This treatment enhances the firmness of the connection and improves the sealing performance.



The sealing design of the YJZQ high-pressure ball valve is critical for its performance

The YJZQ high-pressure ball valve is designed to withstand high-pressure conditions and reliably control the flow and shut-off of fluids in high-pressure pipeline systems. It is capable of handling high pressures and is commonly used in industrial applications involving high-pressure gases or liquids.

The YJZQ high-pressure ball valve is constructed with high-quality sealing materials and a sealing structure to ensure reliable sealing performance under high-pressure conditions. This helps prevent leaks and reduce system losses.

Additionally, the YJZQ high-pressure ball valve typically offers high flow capacity, meeting the demands of fluid control applications with high flow rates. They are suitable for industrial scenarios that require both high flow rates and high pressures.
